SPEEDBLADE

Brand-new model

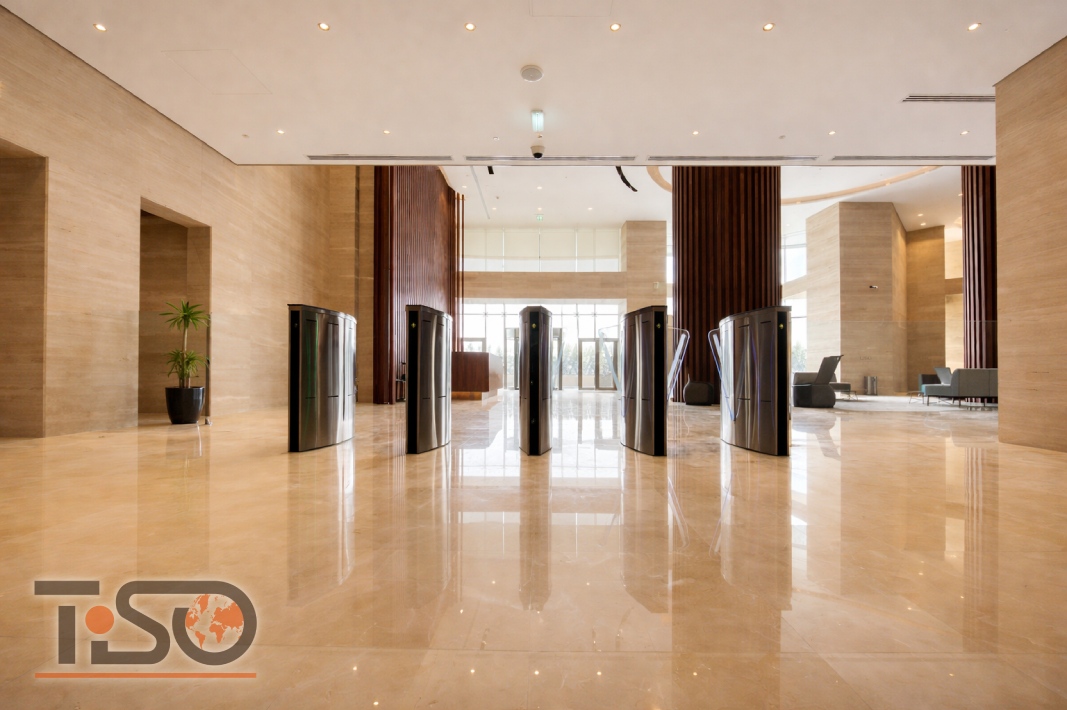

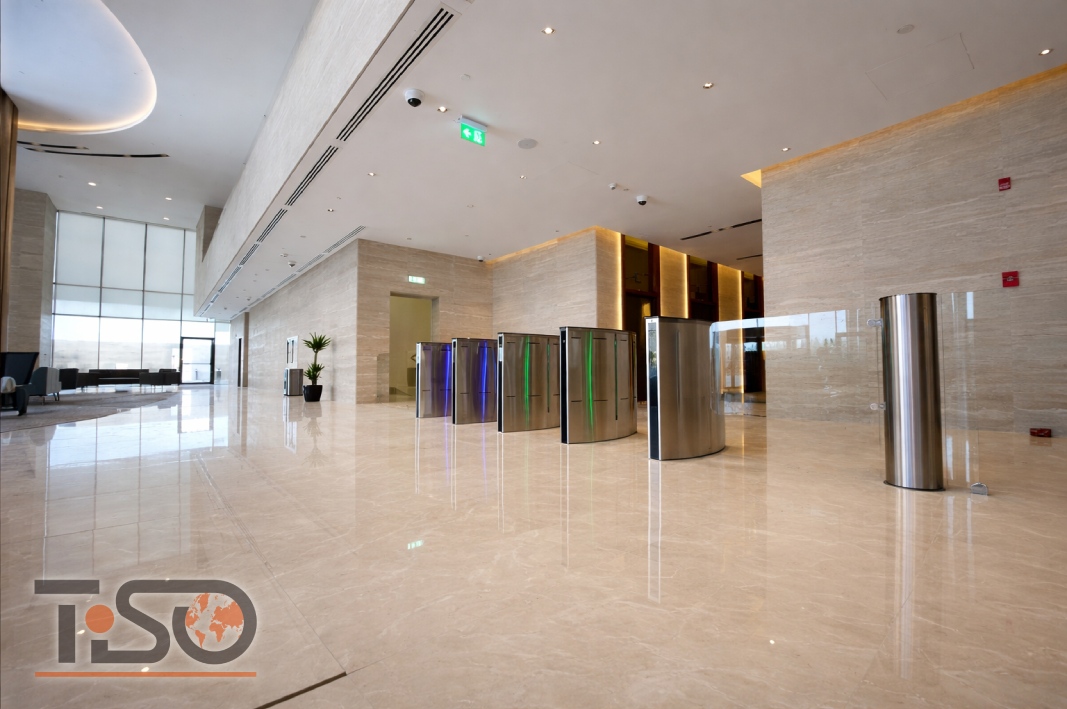

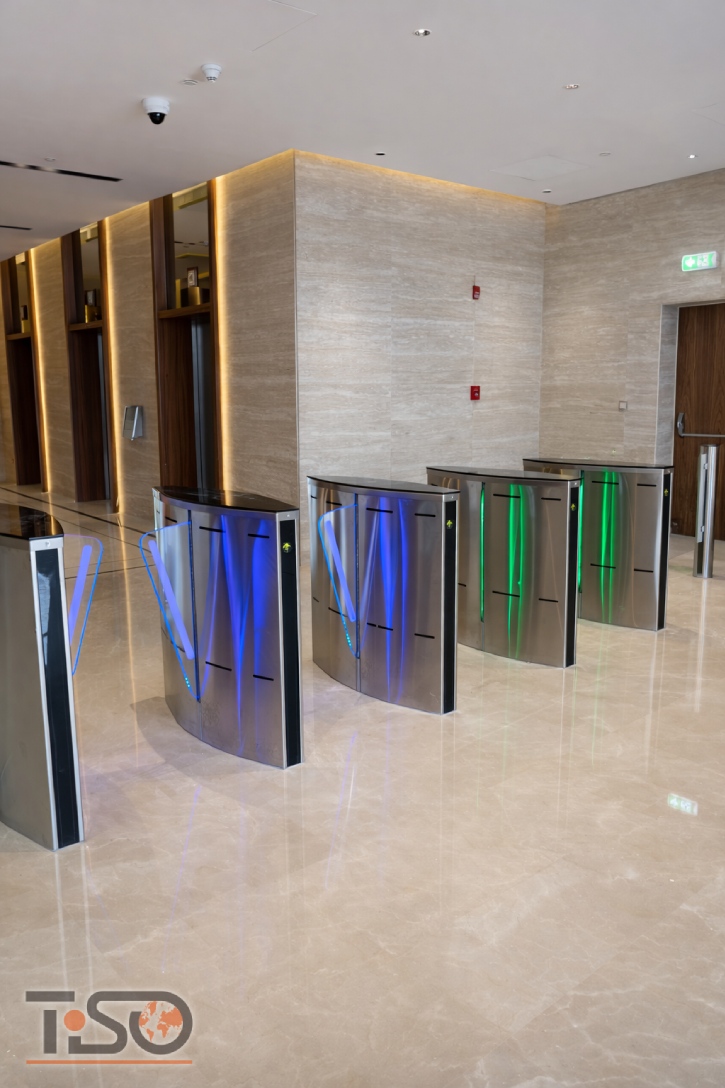

Speedblade – is a type of motorized turnstile featured with retractable flaps operation principle. Housing materials and light weight cabinets’ shape make Speedblade turnstile universal for large variety of facilities with heightened requirements to esthetic equipment appearance. As well as other
TISO speedgates, Speedblade has implemented anti-tailgating function. Turnstiles can be operated from remote control panel or via access control system.

● The speed gates have an ultra-modern futuristic design. Our speed gates of this series are ideal for stylish lobby interiors in hotels, banks, office centers, etc;

●BMDrive® Reliable mechanism with powerful BLDC gear motor ensures long term maintenance-free operation;

● Robust PinLock® locking system prevents from full leaves opening manually in case of vandalism;

● The smart self-diagnosing system of mechanism BMDrive® automatically analyzes the system, detects critical malfunctions, and records error log and warnings;

● The BMDrive® mechanism controller is equipped with an OLED display for easy setup and configuration without special programmers, also a full configuration and diagnostics is possible via a USB connector by using a service software for Windows OS;

●Digital control of force and leaf speed in combination with safety sensors prevent a passing person from being struck by a leaf, even in case of an unauthorized passage;

● By use of artificial intelligence algorithms and large number of high-precision infrared passage sensors, the speed gates detects and alarms when two people try to pass by one card, pass in the wrong direction and pass without authorization;

● Sensor system allows detecting the passage of person with luggage, arranging a free exit without the need for identification.

Product specifications and complete sets may differ from that shown on the photo.

  • Specifications
  • Drawings (pdf/dwg)
  • Bim objects
  • Gallery
  • Video
  • Datasheet
  • Manual
Speedblade 500 Speedblade 900
Unit dimensions (WxLxH), mm Stainless steel top - 290x1000x995
Solid glass top - 295x1005x1000
Stainless steel top - 290x1000x995
Solid glass top - 295x1005x1000
Passage width, mm 550-600 900
Opening/Closing, sec 0,5 0,8
Mechanism BMDrive® servo-driven (BLDC)
Locking system DeadLock®
Mean time to failure MCBF 3 000 000 cycles
Top lid Stainless steel top with plastic inserts
Solid glass top
Voltage from the AC (100–240) V, 50/60 Hz
from a DC source 12 V
Maximum power consumption 160
Standard housing Brushed SS AISI 304
Available housing Brushed SS AISI 316 - Polished SS AISI 304 - Polished SS AISI 316 - Powder coated RAL
Indication DotLights®, RFIDLights®, LeafLights®
* available upon request


Speedblade (PDF 1,49Mb)

Speedblade-177 (PDF 1,6Mb)

Login to get Speedblade .dwg drawing




Download material coming soon. It is currently under development.





Login to get Speedblade manual
