HighWay-G/NG
HighWay-G/NG - perfectly combines modern aesthetics and functionality. The glass leaves and side panels made of impact-resistant glass and provide a feeling of transparency and make it ideal for the most demanding building entrances.
HighWay-G/NG сombining different technologies to achieve state of the art performances, passage detection algorithms constantly monitor the flow of persons through the monitored area until they exit. High leaves exclude the possibility of unauthorized passage, but also prevent to transfer of anything above the turnstile, and provides high visibility of pedestrian progress.
The sophisticated sensor systems ensure a high object security with simultaneous regard to pedestrian safety. Chan-geable illumination and expressive indication makes this turnstile usage safe and comfortable for passengers.
HIGHWAY-G

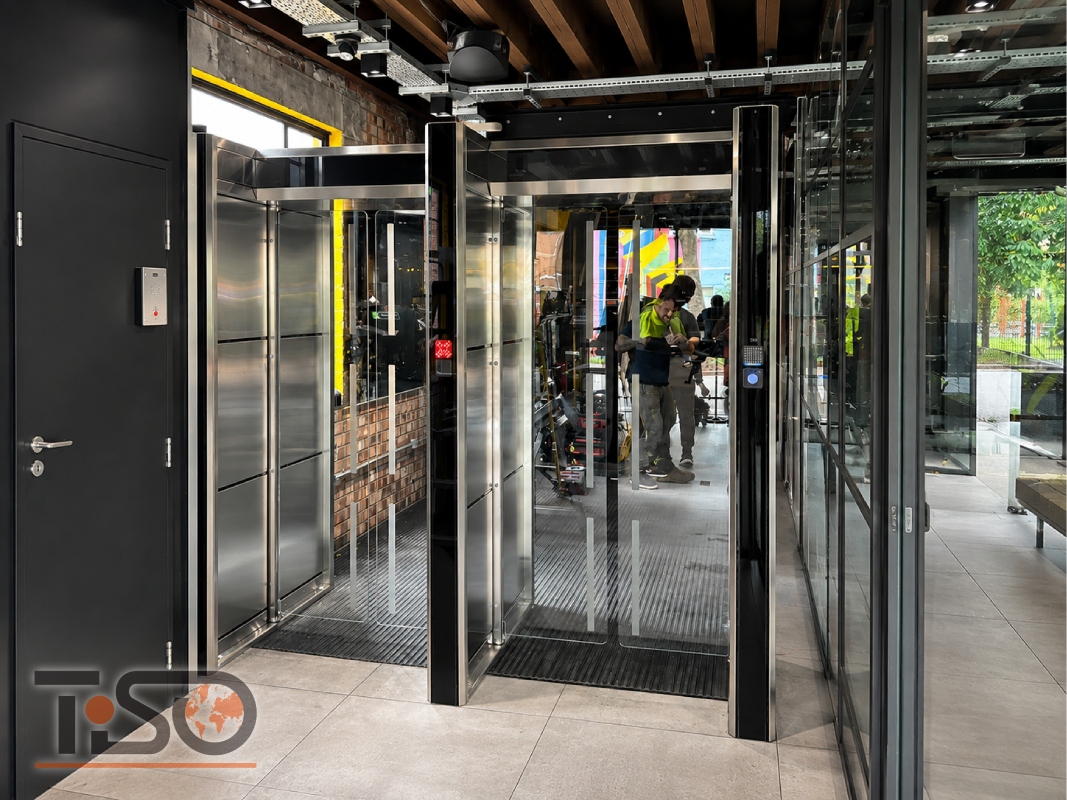

HIGHWAY-NG
Product specifications and complete sets may differ from that shown on the photo.
- Specifications
- Datasheet
- Drawings (pdf/dwg)
- Manual
- Gallery
- Video
- Bim objects
| HighWay-G/NG | ||
| Unit dimensions (HxLxW), mm | 2228x1205x1300 | |
| Passage width, mm | 1000 | |
| Opening/closing time, sec | 1.5 | |
| Throughput at a single passage, persons/min | 60 | |
| Locking system | ToothLock® | |
| Mechanism | BMDrive® servo-driven (BLDC) | |
| Standard housing | Brushed SS AISI 304 | |
| Available housing | Brushed SS AISI 316 Polished SS AISI 304 Polished SS AISI 316 Powder coated RAL |
|
| Voltage | from the AC (100–240) V, 50/60 Hz from a DC source 12 V |
|
| Maximum power consumption, W/pass | 160 | |
| MCBF, cycles | 10 000 000 | |
| Indication | DotLights®, RFIDLights®, EdgeLights® | |
| Protective level, iP | 41* | |
Drawing of HighWay-G (PDF 1,97Mb)
Drawing of HighWay-NG (PDF 1,62Mb)
