Galaxy - M

Galaxy - M turnstile combines the functional Twix and stylish Sweeper.

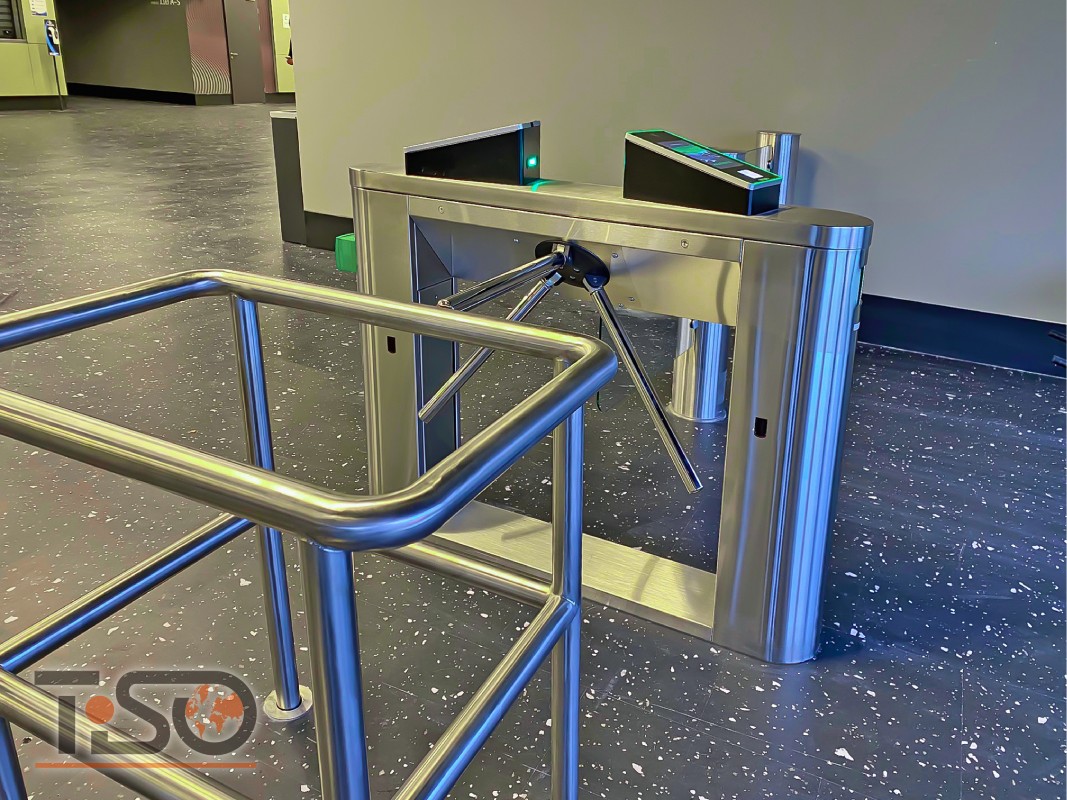

Galaxy M turnstile access consists of transparent glass framed by high strength steel. The contemporary design of the cabinet is a stylish addition to the range. While the housing is manufactured from stainless steel, a number of finishes are available, polished, brushed etc. The glass is equipped with LED indicators that change colour depending on the entrance mode. On the top of Galaxy M tripod barrier turnstile is a card reader and LED display. Galaxy - M has new mechanism Triservo-M.



    Advantages:
  • Bi-directional motorized tripod turnstile with panic / bar drop function;
  • High quality at a cost effective price;
  • Integration with any type of access control and ID systems;
  • Low power consumption;
  • Panic / bar drop function with automatic reset;
  • Whisper quiet, low noise operation;
  • Optional indoor or outdoor housing types;
  • Wide range of accessories;
  • Availability of a back-up battery connection;
  • Complete supply set as a standard.

Product specifications and complete sets may differ from that shown on the photo.

Unit dimensions (HxLxW), mm
1000x1314x745
Crossing capacity in free access mode, person/min
60
Crossing capacity in single access mode, person/min
20
Passage width, mm
605
Mechanism
Motorized (Triservo-M)
Blocking mechanism
Two electromechanical stop catches (separate locking system)
Emergency mode (when power goes off)
Arm drops when power goes off
Drop arm function
Drop arm function can be activated when power is on Drop arm function activates automatically when power goes off
Fail safe
+ (drop arm)
Standard housing
Brushed SS AISI 304
Available housing
Brushed SS AISI 316
Polished SS AISI 304
Polished SS AISI 316
Powder coated (any RAL up on request)
Voltage
AC (100-240)V, 50/60Hz;
DC source 12 V
Maximum power consumption
50 W
Enclosure rating*
IP 41 – 54
MCBF, cycles
1 500 000
  • Specifications
  • Datasheet
  • Drawings (pdf/dwg)
  • Bim objects
  • Gallery
  • Video
  • Manual
Model Galaxy - M
Unit dimensions (HxLxW), mm 1000x1314x745
Crossing capacity in free access mode, person/min 60
Crossing capacity in single access mode, person/min 25
Passage width, mm 600
Mechanism Servo-driven (Triservo-M)
Blocking mechanism Two electromechanical stop catches (separate locking system)
Emergency mode (when power goes off) Arm drops when power goes off
Drop arm function Drop arm function can be activated when power is on
Drop arm function activates automatically when power goes off
Fail safe + (drop arm)
Standard housing Brushed SS AISI 304
Available housing Brushed SS AISI 316
Polished SS AISI 304
Polished SS AISI 316
Powder coated (any RAL up on request)
Voltage AC (100-240)V, 50/60Hz;
DC source 12 V
Maximum power consumption 55 W
Enclosure rating IP 41 – 54 *
MCBF, cycles 1 500 000
* first figure is standard, all other available upon request.


Galaxy - M (PDF 1,57Mb)

Login to get Galaxy - M .dwg drawing




Login to get Galaxy-M BIM objects





Login to get Galaxy-M manual
