Full height turnstiles : Sesame-S

Sesame-S

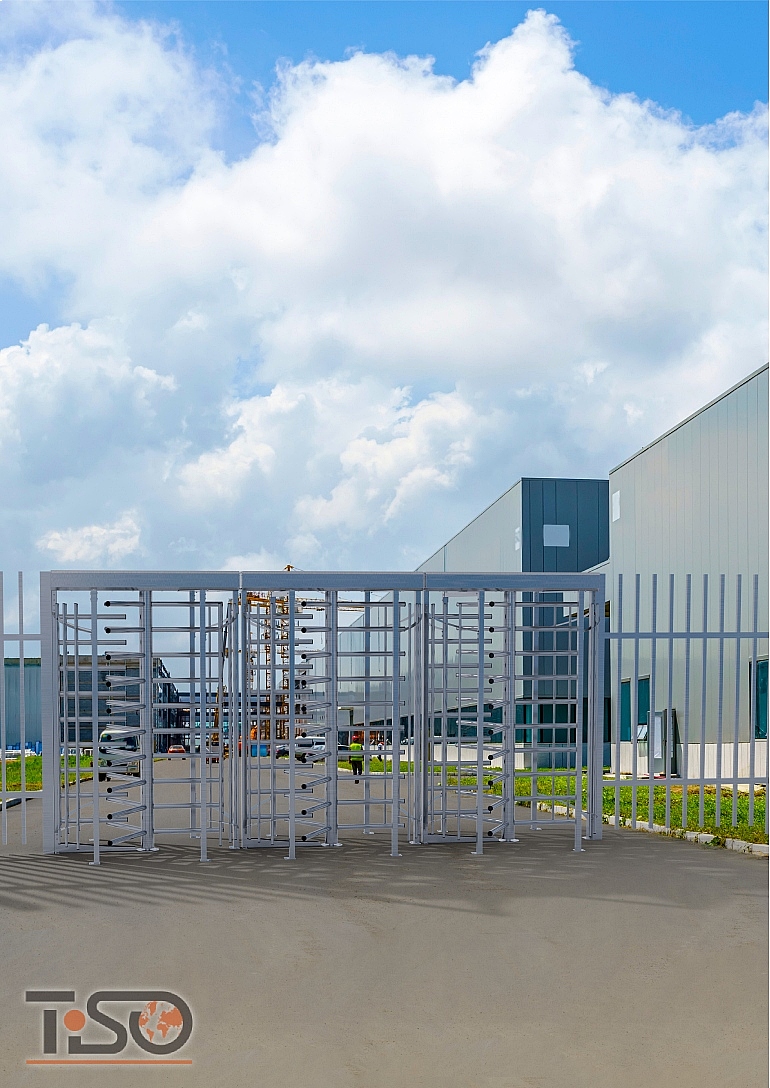

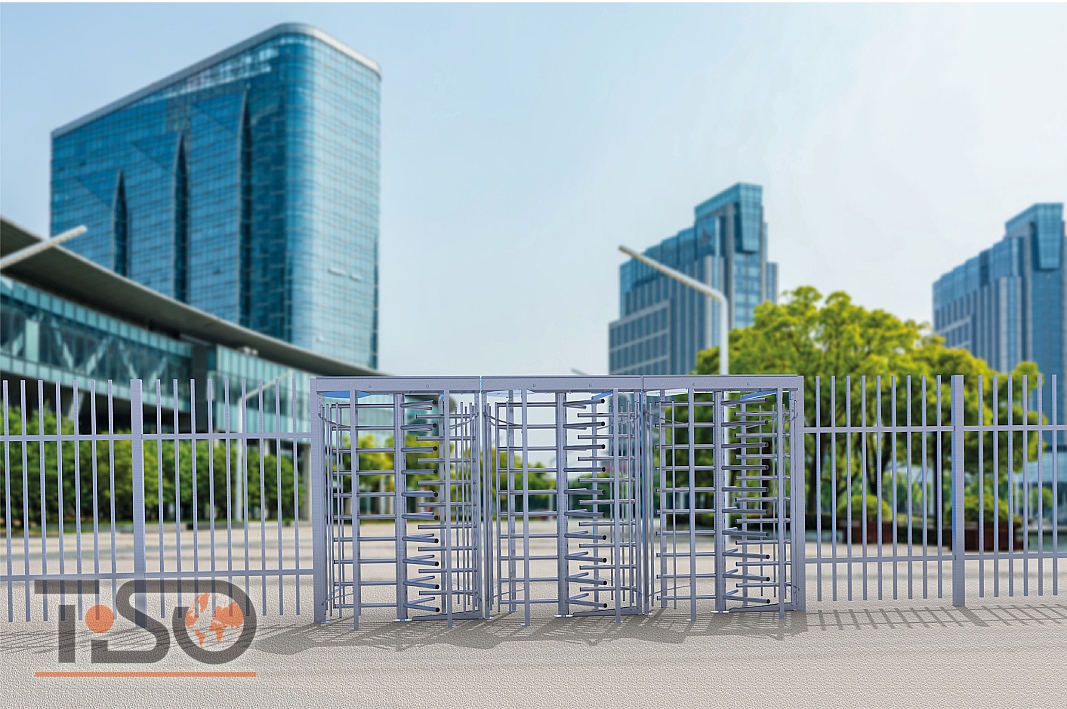

Sesame-S is a one-lane type of full height turnstile gate. It ensures vandal proof security level to large variety of possible applications: stadiums, factories, parks, premises with highest security requirements etc.

Strenght and durability is granted by robust fully welded design.

On ther other hand, attractive for shipment assembly modification of automatic barrier gate is also available.


SESAME-S (X-rotor)




SESAME-S (Y-rotor)




• Highest security level, which can make stricter force control than other type of turnstiles

• Low noise system operation

• Successful combination of affordable price and high
quality

• Steadfast housing suitable for high traffic areas

• The ability to customize housing design and top lid

• Low power consumption

• Can be integrated with any type of access control systems

• Wired remote control panel in standard kit

• In case of power failure, rotor locked in both direcons
(fail secure)


Product specifications and complete sets may differ from that shown on the photo.

  • Specifications
  • Datasheet
  • Drawings (pdf/dwg)
  • Manual
  • Gallery
  • Video
  • Bim objects
  Sesame-S X-rotor Sesame-S Y-rotor
Unit dimensions (WxLxH), mm X type - 1420x1285x2155
Y type - 1420x1170x2155
X type - 1420x1285x2155
Y type - 1420x1170x2155
Crossing capasity, person/min 20
Passage width, mm 615
Mechanism SafeLock-EM
Blocking system Two electromechanical stop catches
Emergency mode Free pass in both direcons
Power fail Fail safe (standard) Fail secure (option)
Construction features Disassembled
Standard housing Brushed SS AISI 304
Available housing Brushed SS AISI 316
Polished SS AISI 304
Polished SS AISI 316
Powder coated RAL
Voltage from the AC (100–240) V, 50/60 Hz
from a DC source 12 V
Maximum power consumption, W 160
MCBF, cycles 5 000 000
Enclosure rating IP41/54 *
* first figure is for indoor installation, second figure is for outdoor installation.
Protection level could be up to IP65 upon request.
