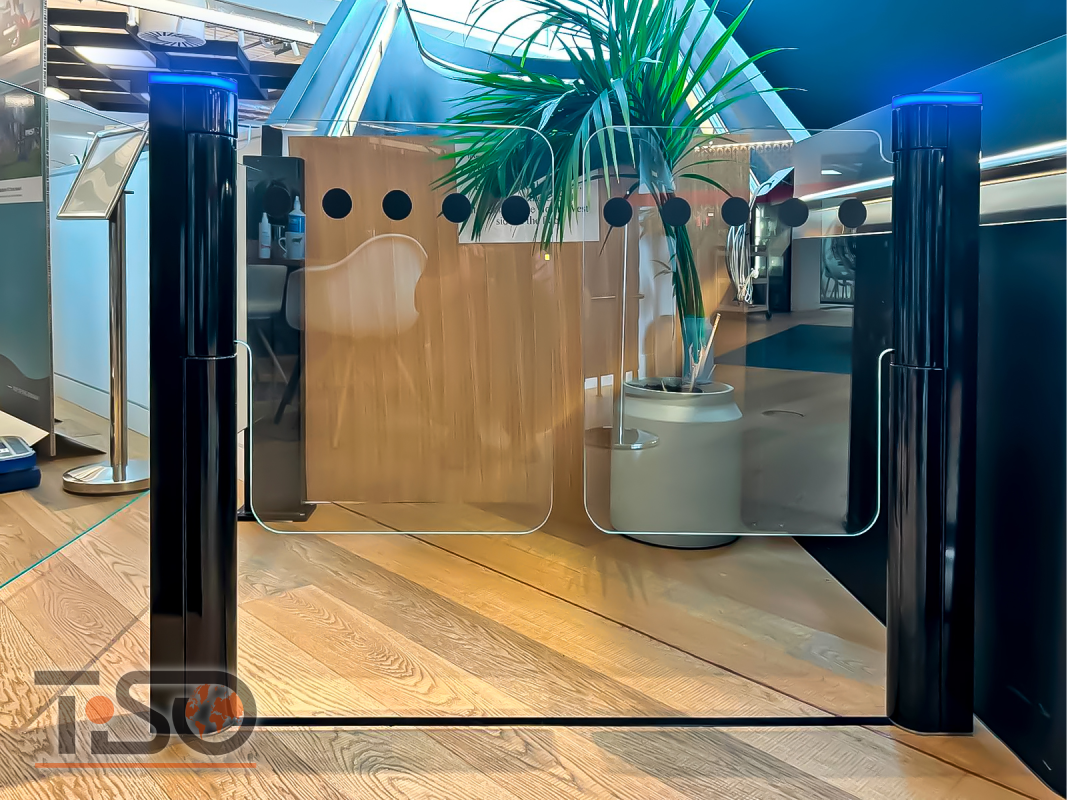

Swing gates : XGate-GS


XGate-GS are advanced automatic swing gates equipped with innovative BMDrive® servo-drive (BLDC) motors. This technology ensures the accuracy and stability of the movement, reducing the energy consumption.

XGate-GS can rotate both clockwise and counter-clockwise by 90°, making them versatile and adaptable to a variety of applications. The ToothLock® locking system ensures that the gate leaf is securely held in the open or closed position, guaranteeing safety and stability.

One of the key features of this model is the possibility of manually opening the gate leaf in the case of a power failure (fail-safe), which ensures reliability and safety in emergency situations.

Product specifications and complete sets may differ from that shown on the photo.

  • Specifications
  • Datasheet
  • Drawing
  • Manual
  • Gallery
Model XGate-GS
Passage width, mm 650-900
Housing width, mm 91
Housing length, mm 118
Housing height, mm 1006
Opening\closing time, sec 2.5 - 3.5
Barrier type glass leaf
Mechanism BMDrive® servo-driven (BLDC)
Blocking system ToothLock
Mean time to failure, cycles MCBF 10 000 000
Standard housing: Brushed SS AISI 304
Available housing: Brushed SS AISI 316
Brushed SS AISI 304
Brushed SS AISI 316
Powder coated RAL
Top cover solid glass
Voltage from the AC (100–240) V, 50/60 Hz;
from a DC source 12 V.
Maximum power consumption, W 60

Drawing XGate-GS (PDF 34 Kб)

Login to get XGate-GS.dwg drawing

Login to get XGate-GS manual
